IR Remote Commissioning Dimmable Motion Sensor Switch CCT Dimming Control

Categories Dimmable Motion Sensor
Brand Name: Hynall
Model Number: HNS117
Certification: RED, FCC, RoHS, ETL
Place of Origin: Shenzhen, China
MOQ: 300pcs
Price: To be negotiated
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Delivery Time: 3~4 weeks for bulk orders
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Output: 0-10v / PWM signal
Channel: 2 channels
Product name: Dimmable motion sensor
Detection range: Up to 12m in diameter
Mounting height: 3-6m
Functions: Tri-level dimming & tunable white
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

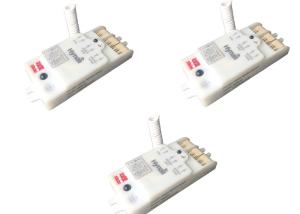

    IR Remote Commissioning Dimmable Motion Sensor Switch CCT Dimming Control

    12V/24V DC input dimmable motion sensor 2channels output integrated dimming control and tunable white functions super compact


    Quick Detail:


    1. Dual-processor technology, real Lux-off &daylight monitoring function for built-in application.

    2. IR remote commissioning, easy setting and user friendly.

    3. Easy access by DIP switch to shift between cool, white and warm.


    Size: 86*33*15.6mm


    Features:


    1.Operating voltage:12/24V DC
    2.Input current:≥25mA
    3.Detection rangeup to 12m in diameter
    4.Super compactflexible to be integrated into any suitable fixtures
    5.Mounting height:3〜6m
    6.Operation temperature:-20℃ ~ +70℃
    7.Two channels output:0~10V / PWM signal, achieve color temperature adjustments.

    8. Real Lux-Off function for built-in application.

    9.Easy access by DIP switch to shift between cool, white and warm.

    10. RoHS compliant.

    Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.


    Remote control Settings:


    OCC OFF
    Press “” button, the motion sensor will be disabled.

    press “” , “” or “” to re-activate the motion sensor.


    Dim
    Press “” button to automatically dim up or down the light brighness during hold-time from 10% to 100%. Another press to lock it down when
    desired brightness is achieved.


    OCC ON
    Press “” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on / off.


    Reset function
    Press “” button, all sensor settings go back to factory default settings.


    Ambient learn
    Press “” button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.


    Test mode
    “Test mode”is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

    Users can quit this mode by pressing “ON/OFF”, “Reset”, or any button of “Hold time”. The sensor settings are changed accordingly .


    CCT Adjust


    Cool: Long press to adjust the color temperature towards Cool, release to stop and lock down current color temperature.

    Warm: Long press to adjust the color temperature towards Warm, release to stop and lock down current color temperature.

    Neutral: Press "Neutral" button, the color temperature will adjust to 50% cool + 50% warm.


    CCT quick selection (DIP switch)


    DIP switch + IR remote control 2 channels CCT setting. Automatically override each other upon the latest operation.
