0-10V/PWM Dimmable Motion Sensor CCT RF Wireless Tri - Level Dimming Integrated

Categories Dimmable Motion Sensor
Brand Name: Hynall
Model Number: HNS117RF
Certification: RED, FCC, RoHS, ETL
Place of Origin: Shenzhen, China
MOQ: 300pcs
Price: To be negotiated
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Delivery Time: 3~4 weeks for bulk orders
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
RF frequency: FSK 915MHz (868MHz EU version available)
RF transmission distance: max. 50m in open area
Output signal: 0-10V/PWM signal
RF grouping setting: DIP switch and remote control
Product name: Dimmable motion sensor
Warranty: 5 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

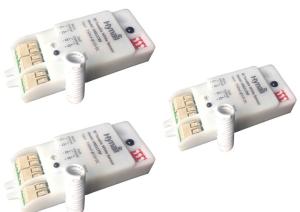

    0-10V/PWM Dimmable Motion Sensor CCT RF Wireless Tri - Level Dimming Integrated

    12V/24V DC input dimmable motion sensor, integrated RF wireless, tunable white, tri-level dimming and remote control


    Quick Detail:


    1. Dual-processor technology, real Lux-off & daylight monitoring function for built-in application

    2. RF wireless cluster control. ideal for retrofit project/ parking garage / staircase / corridor applications, easy installation, free of wiring

    3. Two channels output, achieve color temperature adjustment and tri-level dimming


    Size: 86*33*15.6mm


    Features:


    1.Input current:≥50mA
    2.Operation temperature:-20℃~+70℃
    3.Detection rangeup to 12m in diameter
    4.IRremote commissioning
    5.Mounting height:3〜6m
    6.RoHS compliant
    7.IP rating:IP20

    Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.


    Remote control setting:

    OCC OFF
    Press “OCC OFF” button, the motion sensor will be disabled.

    press “OCC ON” , “Reset” or “Ambient” to re-activate the motion sensor.

    Dim
    Press “Dim” button to automatically dim up or down the light brighness during hold-time from 10% to 100%.

    Another press to lock it down whendesired brightness is achieved.



    OCC ON
    Press “OCC ON” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on / off.


    Reset function
    Press “Reset” button, all sensor settings go back to factory default settings.


    Ambient learn
    Press the button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.


    Test mode
    “Test mode”is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

    Users can quit this mode by pressing “ON/OFF”, “Reset”, or any button of “Hold time”. The sensor settings are changed accordingly .



    Fast RF Grouping ( via DIP switch)

    By simply selecting the same channel on each sensor unit, the grouping is quickly and automatically completed. Totally
    7 channels are available for fast grouping.
    Channel OFF - OFF - OFF is not for fast grouping, it is for remote control grouping only.
