Categories | Lithium Ion Cylindrical Battery |
---|---|
Place of Origin: | Shenzhen zhuhai |
Brand Name: | TAC OEM & ODM |
Certification: | MSDS REACH ROHS |
Model Number: | 3.7V ICR14500 900mAh |
MOQ: | 500 pcs for single cell , 50pack for battery packs |
Price: | usd 1-3 |
Packaging Details: | meet UN38.3 Certification |
Delivery Time: | 7-10 days after order confirm for stock model |
Payment Terms: | 100% prepaid before shipping out |
Supply Ability: | 100000PCS EACH WEEK |
material: | Lithium Ion Cylindrical Battery |
voltage: | 3.7v |
capacity: | 900mah |
circle life: | 500 times |
warranty: | 1 year |
pvc: | blue or oem |
PO NO: | PLFC1004 |
asscemble: | workable |
Company Info. |
Guang Zhou Sunland New Energy Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information
IFR14500 3.2v flat type
IFR14505 3.2V Top type
The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm
Pls check the max size whether meet your require.
No. | Item | General Parameter | Remark | |
1 | Rated Capacity | Typical | 900mAh | Standard discharge(0.2C5A) after Standard charge |
Minimum | 850mAh | |||
2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
3 | Voltage at end of | 3.0V | Discharge Cut-off Voltage | |
4 | Charging Voltage | 4.2±0.03V | ||
5 | Internal Impedance | ≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
6 | Weight | 20±1g | ||
7 | Standard charge | Constant Current 0.2C5A | ||
8 | Standard discharge | Constant current 0.2C5A |
9 | Fast charge | Constant Current 1C5A | |
10 | Fast discharge | Constant current 1.5 C5A | |
11 | Maximum Continuous Charge Current | 1 C5A | |
12 | Maximum Continuous Discharge Current | 1.5C5A | |
13 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. |
Discharge: -20~60℃ | |||
14 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. |
less than 3 months: -20~40℃ | |||
Less than 7 day : -20~65℃ | |||
15 | Pack Dimension | High:50.0±0.5mm | Initial Dimension |
Diameter: 14.3±0.2 mm |

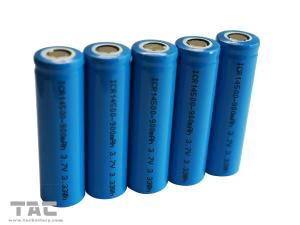

The battery can be use for Portable electronic devices such as digital camera,flashlight, solar lamp,etc.
The battery cell passed UL UN38.3 Reach
![]() |
