Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core

Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core

Overall Dimension

1.Brand:BRANDO

2.NO.BAPC314339654

3.Voltage:AC/DC

4.Tube OD:14.3mm

5.Tube height:39.6mm

6.Item weight:57gram

7.Guide Core height:33.9mm

8.Depth:27mm

9.Armature height:54.5mm

10.Standard or no:Standard

11.O-Ring or no:O-Ring

O-Ring:An O-ring seal between the tube and the plugnut will prevent the fluid from escaping.

.

Material of each part we use

1.Stainless steel for armature and movable core.

2.NBR for seal

NBR:NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkaline.

3.We also use 430FR or brass H59/H62 and seal for viton/PTFE.

Application of this item

1.Mainly used for special valve armature

2.Solenoid valve can be used in

Dental equipment

Dust collector valve

Automatic vending machine

Pulse device

Pneumatic equipment

Auto drain industry

Air suspension

Refrigeration device

Hyraulic industry

Life water and industry water supply

Air condition device/Air suspension valve

Pipe switch

Evr solenoid valve

Forged brass solenoid valve

Manufacture Process

Picture of different type solenoid valve

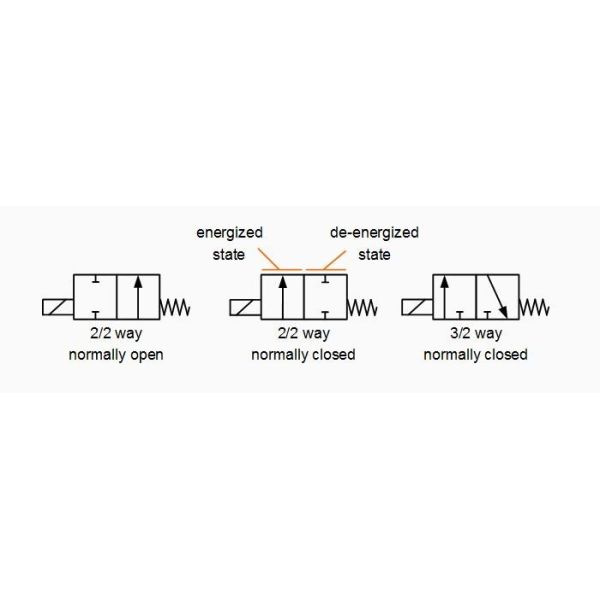

Threee type of the solenoid valve,2/2 way normally open,2/2 way normally closed and 3/2 way normally closed type.

This picture shows that three different type solenoid valves' work principle in energized state or de-energized state.And can explain most suitation of solenoid valve

If you are interesed in our products or want to buy, welcome your contact and you can ask any questions you want to know.

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
