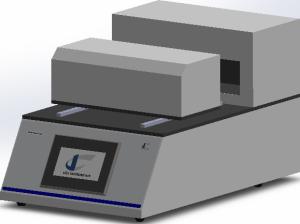

Film shrink force and ratio tester ASTM ISO 14616 DIN 53369 shrinking force contracting force and shrinkage ratio test

FSR-01 shrink force and ratio tester is used for the shrinking forces and shrinkage ratio measurement of heatshrinkable films.

Shrink force and ratio tester has following features:

1. Three test groups (6 samples) for high efficiency

2. High resolution force and displacement transducers

3. PLC control unit and touch screen operation

4. Real time display of shrinking force, contracting force and shrinkage ratio.

5. Stable and balanced heating system

6. Absence of irrelevant interference factors like friction, cool air, etc.

Shrink force and ratio tester Technical Specification

Force Range 0.2 ~ 50 N ( or as required)

Accuracy ±0.2%

Displacement Range 0.1 ~ 70 mm

Accuracy ±0.1 mm

Temperature Range Ambient ~ 230°C

Accuracy ±0.5°C

Number of Specimens 3 groups

Power Supply 220V 50Hz

Shrink force and ratio tester​ Standards

ISO 14616, DIN 53369

Cell Instruments Co., Ltd. is committed to the development of testing technology, specializing in research, manufacture and sales of testing instruments and other industrial products. Business scope includes testing instruments, PLC programing & maintenance and product customization.

Cell Instruments Co., Ltd. products are widely used in research facilities of packaging, food, pharmaceutical and daily chemical companies, academies, official lab and other facilities as well. Cell Instruments Co., Ltd. offers state-of-the-art packaging control solutions for plastics, paper, textiles, food, pharmaceutical, toiletry, printing and adhesive industrial, etc.

A comprehensive range of leak testers, burst tester, heat seal testers, hot tack tester, coefficient of friction tester, tensile testers, compression tester, medical package tester, impact, tear, peeling, flex, rub, torque, sensors, accessories and grips, is trusted by our clients for their various features and versatility, including accuracy, good performance, long operational life and easy maintenance. Timely and high-quality customer service is another way to achieve customer satisfaction and their lasting preference.

We are backed by a team of professionals with rich industry experience and high qualification, Their in-depth knowledge of the field helps us in manufacturing our high quality product range in compliance with international standards and also client's requirements.

    By virtue of good corporate reputation, Cell Instruments sincerely welcomes partnership globally.
