| Categories | Armature Testing Equipment |
|---|---|
| Brand Name: | WIND AUTOMATION |
| Model Number: | WIND-ATS-300 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Delivery Time: | 20 working days |
| Packaging Details: | Wooden case suitable for sea shipment |
| Condition: | New |
| Testing Product: | Armature with commutator bars below 96 |
| Working station: | Two station |
| Machine Color: | White or Per Customer Requirement |
| After sales: | Engineers available to service machinery overseas |
| Certificate: | Main Parts CE |
| Company Info. |
| Shanghai Wind Automation Equipment Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

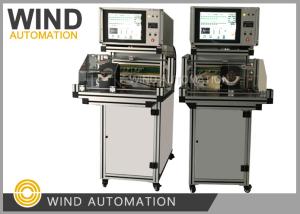

Double Station Armature Testing Panel Rotor Analyser Commutator Bars Below 96 WIND-ATS-300
(1) Application
This armature testing machine test the bar-bar resistance, welding resistance, dielectric strength(Hi-pot),
insulation resistance and turn-turn insulation.
The loading and testing mode could be shifted by sliding the safety cover.
The testing panel starts testing once the safety cover being slid upon the working station.
(2) Competitive Advantages
1.Test armature up to 96bars commutator
2. Double working station can be shited easily by move the safety cover
(3) Technical Data
| WIND-ATS-300 | Number of bars :≤96 | |
| Test items | Test Description | Test results |
| 0.001Ω-1000Ω | ≤±0.5%Full scale | |
| Inter-chip resistance | Automatic environment temperature compensation | |
| 0.001mΩ-10mΩ | ±10μΩ | |
| Welding resistance | ||
| 0.01Ω-1000Ω | ≤±0.5%Full scale | |
| 180 resistance | Automatic environment temperature compensation | |
| 100-2000Vpp | ±2.5% | |
| Surge | (Max 96 sets waveform) | |
| DC 500V | 0.1-500MΩ | |
| Isolation resistance | ≤±2.5% Full scale | |
| AC 100-2000V | 0-20mA | |
| Hipot | (2set high pot test) | ≤±2.5% Full scale |
Power: AC220V ±10% @50Hz
Air pressure: 0.4-0.6Mpa
Temperature: 0-45℃
