FRC Cable CU Conductor MICA Tape XLPE Insulated PVC Sheathed Fire Proof Cable

Categories Fire Resistant Cable
Brand Name: SHANCABLE
Model Number: NH-YJV
Certification: CE/KEMA/ISO/PCCC
Place of Origin: SHANGHAI,CHINA
MOQ: 1000m
Price: 0.15-35.9 US$/M
Supply Ability: 10KM per Week
Delivery Time: As per requirement
Packaging Details: Customized
Function: Fire Resistant/Proof
Screen: MICA tape
Rated Voltage: 0.6/1kV
Insulation: XLPE
Number of cores: 4
Application: Indoor and Outdoor
Sheath: PVC/PE/LSOH
Color: Black, Orange
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FRC Cable CU Conductor MICA Tape XLPE Insulated PVC Sheathed Fire Proof Cable

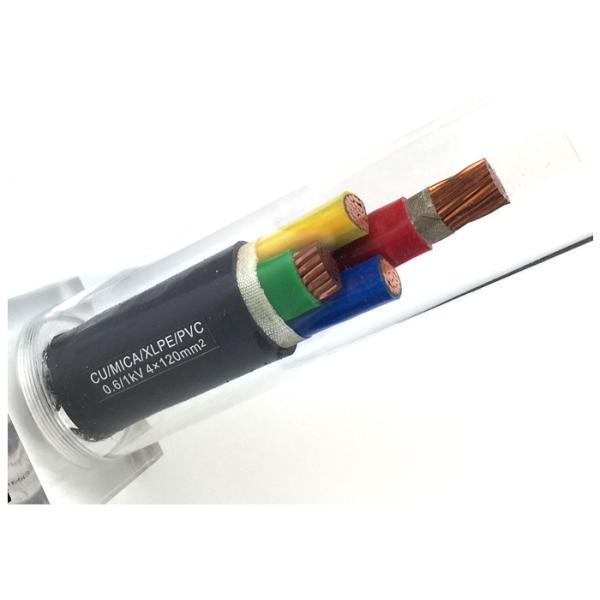

0.6/1kV 4x120mm2 FRC Cable CU Conductor MICA Tape XLPE Insulated PVC Sheathed Fire Proof Cable


Constructions-

Conductor - Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation - XLPE or LSZH compound

Sheath - PVC/PE/LSZH compound

Core color- red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Max. Operating Temperature - 100 meters per roll or wooden drum or as per requirement

Production Capacity - 20 kilometer/ day

MOQ - 5000 meters for small size, 1000 meters for big size


Applications-

These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

And tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Rated Voltage: 0.6/1KV

Range of Nominal cross section: 4 cores: 1.5 mm2 ~ 300 mm2



Standards-

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request


Technical data-

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%


Certificate-

CE, RoHS, CCC, KEMA and more others at request


Specification-

Nom. Cross-section of conductorInsulation ThicknessSheathApprox.ApproxMax. D.C. Resistance of Conductor (20°C)Test VoltageCurrent Rating
mm2mmThicknessO.D.WeightΩ/kmA.C
mmmmkg/kmkV/5minIn air(A)In soil(A)
4×1.50.71.814.424112.13.52027
4×2.50.71.815.42957.413.52635
4×40.71.816.53694.613.53445
4×60.71.817.84633.083.54357
4×100.71.820.96671.833.56077
4×160.71.823.49301.153.583105
4×250.91.827.113510.7273.5105125
4×350.91.829.517720.5243.5125155
4×5011.938.423800.3873.5160185
4×701.1243.233020.2683.5200225
4×951.12.247.343300.1933.5245270
4×1201.22.352.553740.1533.5285310
4×1501.42.558.366550.1243.5325345
4×1851.62.764.782460.09913.5375390
4×2401.72.973.1105690.07543.5440450

Operating characteristics

1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;

2. Installing temperature of cable should not be less than 0°C;

3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;

4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.


FAQ

Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

Payment: We accept T/T, L/C , just choose what you like

Delivery time: Generally 15~25 working days upon receipt deposit. According to the quantity.

MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
