PP Material Powder Crusher Machine , 3700rpm Plastic Recycling Shredder

Categories Plastic Grinding Mill
Brand Name: yiming
Model Number: YMMF-500
Place of Origin: zhangjiagang
MOQ: ≥1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 12
Delivery Time: 25work days
Packaging Details: Wooden packing
power: 37kw
Capacity: 80-250KG/H
Dusting: bag
fineness: 10-100mush
material: skd11
breaing: nsk
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

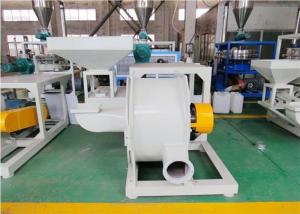

PP Material Powder Crusher Machine , 3700rpm Plastic Recycling Shredder

PP500 Plastic Grinding Mill

Million Ming Machinery produced PP600 grinding machine features are as follows:


1, PP material is prone to fusible, sticky material in PP500 mill, and our company for this feature, you can put PP into powder material


2, PP material yield is low, not easy to grind, 10 million Ming machine plastic grinding machine, the highest fineness of up to 100 mesh


3, PP500 mill with air-cooled, water inlet to complete water cooling


4, user-friendly plan, easy to learn


5, fully comply with national policy, no dust pollution


Usage

1, With water spray cooling system. it is suitable for processing of thermal sensitive material. With unique water spray cooling system. When the temperature of main machine is higher than setting temperature, water spray automatically until the temperature decreased normally.

Note: less of water spray into to machine will be dryed quickly which will not affect material properties. It can be installed by your requirements.


2, The raw material become power by vibration principle of ultrasonic vortex wave pressure which is from the high speed rotating of main shaft.


The material is conveyed to screening system by wind conveying. The coarse materal is back to the milling chamber automatically, then pulverized again.


3, The blade adopt high quality steel which is treated by heating.after heat treatment, with good abrasion resistance. It is suitable for continuous running.


4, This size of machine is small with compact structure, fully sealed, no dust overflow.


5, The material is transferred based on own wind pressure.


Technical Specification

TypeYMMF-500
Electricity380V/3PHASE/50HZ
PowerMain motor37kw
Fan4kw
Main motorRotating motorΦ510mm
Fixed bladeΦ510mm
Feedingautomaticvibration
Colling modewaterAIR-cooled
Rotating speedminute3700rpm
CapacityH80-250KG

Electrical

Equopment


Shaft

contactor1delixiCJX-2-100 220V
contactor2delixiCJX-2-150 220V
SKF6312
Dustingbag

Protection

equipment

High and low voltage protection

Overload protection

Suction device

Dust collecting bag protection with 9 bags
