Name: 26650 Lithium Ion Battery Cell 32V 3200mAh Lifepo4
Brand: CLTF/OEM
Price: 1 USD

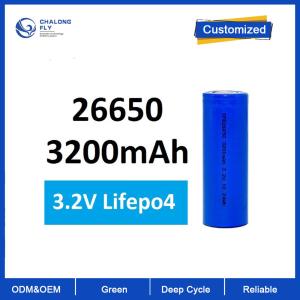

26650 Lithium Ion Battery Cell 3.2V 3200mAh Lifepo4

Product Specifications

No.	Items	Specifications		Remark
1	Nominal Capacity	3200mAh		0.2C Standard discharge
3	Nominal Voltage	3.2V		Operation Voltage
4	Delivery voltage	3.2~3.3V		Within 10 days from Factory
5	Charge Voltage	3.65V±0.03V		By standard charge method
6	Standard charging method	0.2C constant current, 3.65V constant voltage, constant current charging ≤0.01C		Time about 6-7h(Ref)
7	Charge current	0.2C		640mA
7	Charge current	0.5C		1600mA
8	Standard discharging method	0.2C constant current discharge to 2.0V		0.2c constant current discharge to 2.0v
9	Cell Internal Impedance	≤40mΩ		Internal resistance measured at AC 1KHZafter 50% charge
10	Maximum charge current	1C	3200mA	For continuous charging mod
11	Maximum discharge current	2C	6400mA	For continuous discharge mod
12	Operation Temperature and relative humidity Range	Charge	0~45℃ 60±25%R.H.	When charge at a very low temperature such as blew 0℃, will get a lower capacity and reduce cycle life of the battery
12	Operation Temperature and relative humidity Range	Discharge	-20~60℃ 60±25%R.H.
13	Storage temperature	-20~25℃ 60±25%R.H.		Must charge once when storage exceed half year. Must charge once which battery with protect circuit when storage exceed three months.

Product Applications

Large electric vehicles: buses, cars, classic tour buses and hybrid vehicles, etc.
Light electric vehicles: electric bicycle, golf cart, small flat battery car, forklift, cleaning car, electric wheelchair, etc.
Power tools: electric drill, electric saw, lawn mower, etc.
Energy storage equipment for solar energy and wind power generation
UPS and emergency lights, warning lights and mine lights (the best safety)
Small medical instruments and portable instruments, etc.

Product Features

Cell Intial Dimensions

Product Tags:

26650 Lifepo4 Battery Cell
