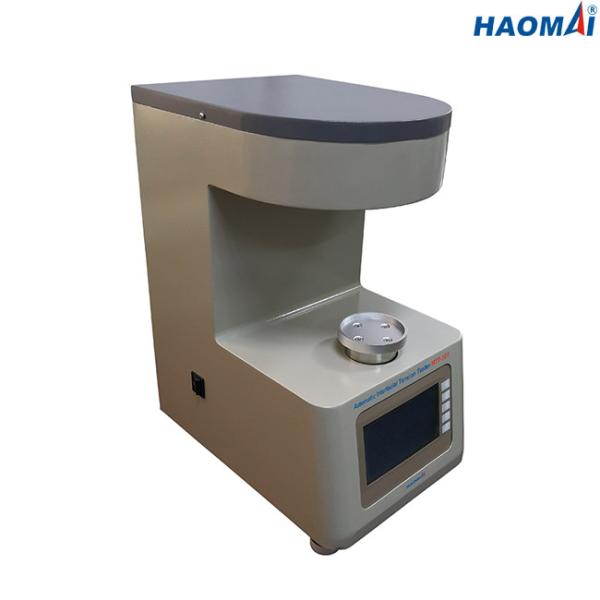

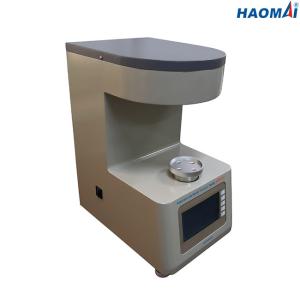

HAOMAI BDV Insulating Oil Testing Equipment Kit 200mN/M Automatic

Automatic Interfacial Tension Tester

Model: HTT-101

Interfacial Tension Tester is designed according to standard ISO6205-1983 Petroleum products-Mineral oils-Determination of interfacial tension of oil against water-Ring method, which can measure interfacial tension of mineral oils against water.

Main Features

1) Design according to standard ISO6205-1983

2) Able to measure interfacial tension of mineral oils against water

3) Display equivalent tension value and current weight in real time

4) Adopt electromagnetic force-balance-type sensor to improve measurement accuracy

5) Integrated temperature detection circuit for temperature compensation

6) 240×128 dot matrix LCD display

7) Able to save 255 test results with time tags on board

8) Able to print test results via built-in thermal printer

Technical Data

◆Measuring range: 0-200mN/m

◆Accuracy: 0.1% reading ±0.1mN/m

◆Resolution: 0.1mN/m

◆Sensibility: 0.1mN/m

◆Mains: AC220V±20%, 50Hz±10%

◆Maximum power dissipation: 20W

◆Dimensions: 200×300×330mm(7.87×11.81×12.99 in)

◆Weight: 6kg(13.23 lb)

◆Environmental conditions

operating temperature: 10-30℃

humidity: ≤85% RH

Automatic Interfacial Tension Tester HTT-101 is ideal tools for engineers.
