| Categories | Drilling Rod |
|---|---|
| Brand Name: | MEGA DRILLTECH |
| Model Number: | 127mm |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| Payment Terms: | T/T, T/T, T/T, T/T, T/T |
| Packaging Details: | BUNDLE PACKING |

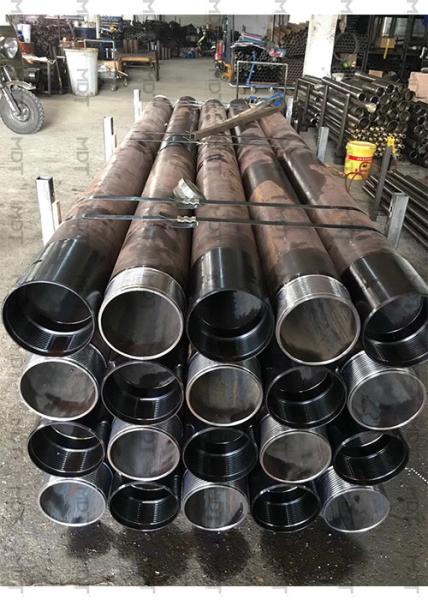

| TYPE: | 273 casing pipe |
| Company Info. |
| HUNAN MEGA DRILLTECH CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
| W Casing Numbers | ||||||
| Std | OD (mm) | ID (mm) | Wall Thickness (mm) | Thread Pitch (mm) | Pin Thread Length (mm) | Weight (kg/m) |
| AW | 57.20 | 48.40 | 4.40 | 6.35 | 57.20 | 5.73 |
| BW | 73.00 | 61.00 | 6.00 | 6.35 | 63.50 | 10.51 |
| NW | 88.90 | 76.20 | 6.35 | 6.35 | 69.90 | 12.92 |
| NWA | 91.00 | 80.00 | 5.50 | 6.00 | 72.00 | 11.59 |
| HW | 114.30 | 101.60 | 6.35 | 6.35 | 76.20 | 16.90 |
| PW | 139.70 | 127.00 | 6.35 | 8.47 | 82.60 | 20.87 |
| WT Casing Numbers | ||||||
| Std | OD (mm) | ID (mm) | Wall Thickness (mm) | Thread Pitch (mm) | Pin Thread Length (mm) | Weight (kg/m) |
| HWT | 114.30 | 101.60 | 6.35 | 10.16 | 62.74 | 16.90 |
| PWT | 139.70 | 127.00 | 6.35 | 10.16 | 62.74 | 20.87 |
Forsun manufactures Metric Casing and Flush-Jointed Casing and
Flush-Coupled Casing.
Sizes include BW, NW, HW, PW, HWT, 46mm, 56mm, 66mm, 76mm, 86mm,
98mm(101mm), 113mm(116mm), 128mm(131mm), 146mm(143mm), 4", 5", 6",
8", 10", 12", NX, HX, PX, 89 mm,108 mm, 127 mm, 110 mm.
|
