LIYI NSS Lab Salt Mist Testing Equipment , 600L Electronic Corrosion Test Chamber

Categories Salt Spray Test Chamber
Brand Name: LIYI
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: 820.00 - 1,800.00 USD
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per months
Delivery Time: 30-40 working day
Packaging Details: Plywood pallet box
Warranty: 12 Months
Customized support: OEM, ODM
Usage: Salt Spray Tester
Test chamber temperature: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Design standards: GB/T 10587-2006,GB/T 10125-1997, JIS-D0201,H8502,H8610,K
Test chamber capacity: 180L,270L,600L,1440LN or custom made
Volumn: Customize
Spray quantity: 1.0~2.0ml/80cm2/h
PH: 6.5~7.2 3.0~3.2
Controller: PID or LCD touch screen
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

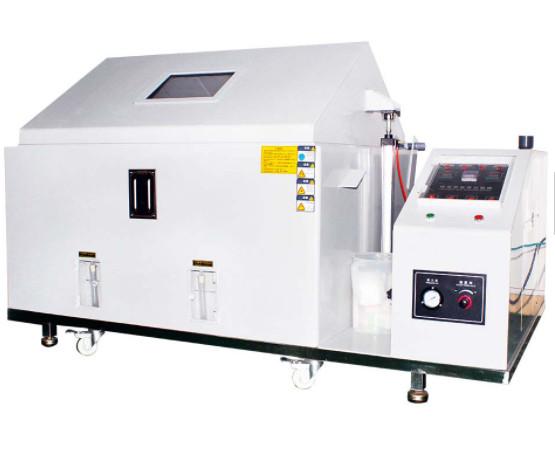

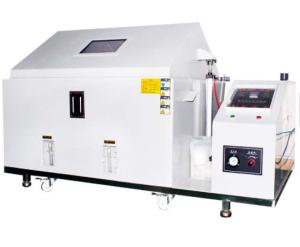

LIYI NSS Lab Salt Mist Testing Equipment , 600L Electronic Corrosion Test Chamber

LIYI NSS Lab Salt Mist Testing Equipment , 600L Electronic Corrosion Test Chamber
Products Description
Liyi salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.

Liyi salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.

Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. Controller is digital type microcomputer which delivers precision temparature.
3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4. Test specifications are accept worldwild.
Product Paramenters
Model
LY-609-60
LY-609-90
LY-609-120
LY-609-150
LY-609-200
Design standard
GB/T 10587-2006, GB/T 10125-1997,
JIS-D0201, H8502, H8610, K5400, Z2371
Test chamber capacity(L)
108L
270L
600L
750L
1000L
Temperature
Test chamber
NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder
NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Test chamber size
L×W×D(cm)
60*45*40
90*60*50
1200*1000*500
1500*1000*500
2000*1000*500
Max capacity of test liquid(L)
15
25
40
40
40
Power
AC220V,10A
AC220V,15A
AC220V,30A
Detail Images

Simply Description of the chamber

Stroage
We normally keep some models in stock for some urge purchase
Wanna know more about this machine? Click here for more information

Particular parts

Inner chamber reference
