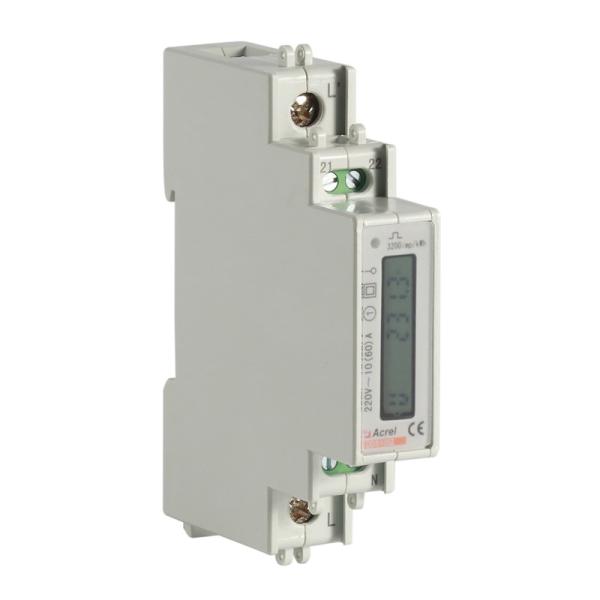

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

ADL10-E Single Phase Electric Energy Meter

● AC 220V

● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U,I,P,Q,S,PF,kWh,kvarh
● DIN 35mm

Characteristic

Communication

RS485
(Modbus-RTU)

Function

Accuracy kWh Class 1,Kvarh Class 2 Frequency 50HZ Auxiliary power supply(self supply) AC 220V(L-N),range:154~264Vac Consumption <10VA(Single phase)
	Installation DIN 35mm Dimension(L*W*H) 18*88*70 mm Starting current 0.004Ib

LCD Display

Wiring

Typical connection
