| Categories | Brake Chamber |
|---|---|
| Brand Name: | BYF |
| Model Number: | Type 30 |
| Certification: | ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, , Cash |
| Supply Ability: | 10000 Piece/Pieces Per Month |
| Delivery Time: | 15 Days |
| Packaging Details: | By The Requirement Of Customer |
| Brake Chamber Type: | 30 |
| OEM NO: | 4231079000 |
| Material: | SPHC |
| Weight: | 10 lbs |
| Stroke: | 75mm |
| Air Inlet Thread: | 2-M22*1.5(VOSS) |
| Bolt Thread: | 5/8"-11UNC Or M16×1.5 |
| Port Rod Thread: | 5/8"-18UNF Or M16×1.5 |
| Bolt Center: | 76.2mm |
| Push Rod Length: | 190mm |
| Connect Fork Pin Diameter: | 14mm |
| Port Angle: | 90 Degrees |
| Clamp Angle: | 135 Degrees |
| Loading Port: | Ningbo Port Or As Requested |
| Color: | Silver |
| Oem No: | 1186753 |
| Oe No: | 925 302 002 0 |
| Sealing Material: | Nitrile Rubber |
| Maximum Pressure: | 120 psi |
| Type: | Spring Brake |
| Push Rod Thread: | 5/8-18 |
| Max Operating Pressure: | 120 psi |
| Stroke Length: | 60mm |
| Valve Type: | Push-Pull |
| Port Size: | 1/2 inch |
| Rod Thread Length: | 33mm |
| Company Info. |
| Shenzhen BYF International Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Service Brake Chamber Type 30 | OEM 4231079000 | Single Diaphragm Air Chamber T30 | For Axles With Drum Brakes
OEM QUALITY BRAKE CHAMBER T30
Type 30 Brake Chamber. 75mm stroke. For port and bolt thread, both inch and metric are optional.
| Working Pressure | 800KPa |
| Maximum Working Pressure | 1MPa |
| Pushrod Stroke | 0 - 75mm |
| Ambient Temperature | - 40 ~ +80°C |
| Surface Finish | 100hrs clear or yellow zinc plated, black powder coating |
| Service Time | ≥1,000,000 times |
| Life-time For Parking Chamber | ≥200,000 times |
Product Details

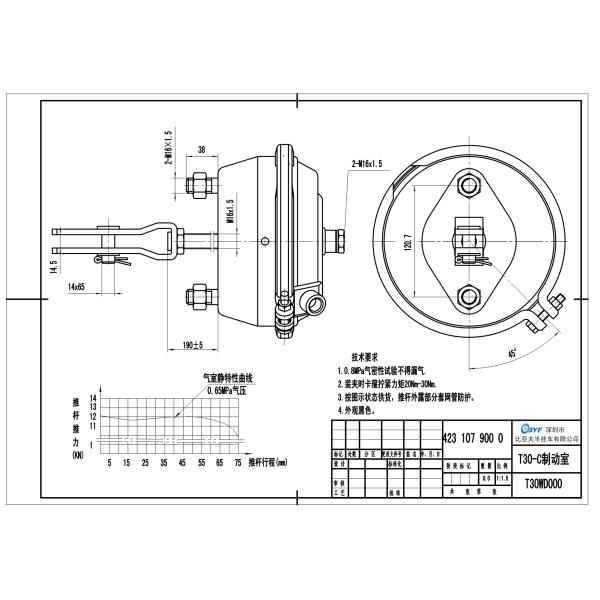

Drawing Details
Other Models For Your Choice
| T3030DD-L(SEALED) | T2424DCP | |
| T2430DD-L(SEALED) | T2024DCP | |
| T3030DD(SEALED) | T1624DCP | |
| T2430DD(SEALED) | T30 | |
| T3030DD | T24 | |
| T2430DD | T20 | |
| T2424DD | T16 | |
| T2024DD | T12 | |
| T1624DD | T9 | |
| T3030DP | T30-L | |
| T2430DP | T24-L | |
| T3024DP | T20-L | |
| T2424DP | T30-DISC | |
| T2024DP | T24-DISC | |
| T1624DP | T20-DISC | |
| T2430DP-DISC | T16-DISC | |
| T2424DP-DISC | T9/6200 | |
| T2024DP-DISC | T12/6200 | |
| T1624DP-DISC | T12/1200 |
Packing & Delivery
1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs
2. Neutral packing, brand packing, corrugated box
3. Or as your request packing brake chamber
Fatigue Testing
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
|
