| Categories | Nickel Plated Copper Bus Bar |
|---|---|
| Brand Name: | BG |
| Model Number: | Nickel Plated Copper Bus Bar |
| Certification: | ISO9001, SGS |
| Place of Origin: | Guangdong, China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 pcs |
| Delivery Time: | Negotiation |
| Packaging Details: | Standard export carton package |
| Material: | Oxygen Free copper |
| Size: | Custom made |
| Thickness: | 3.0mm |
| Width: | 12mm |
| Length: | 128mm |
| Feature: | High Temperature Resistant |
| Finish: | Plate with nickel |
| Usage: | Electric power industry for connecting conductors. |

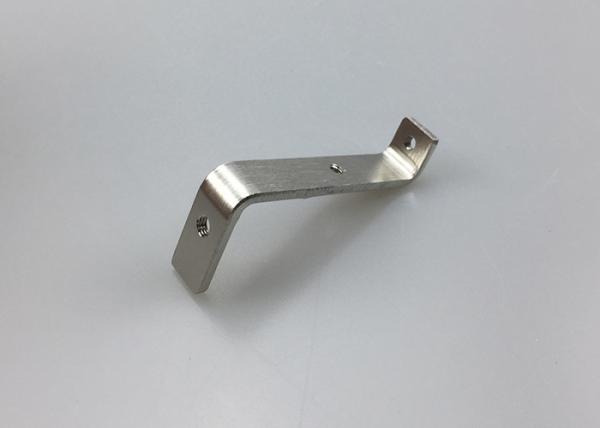

Oxygen Free Nickel Plated Copper Bus Bar High Temperature Resistant
Nickel Plated Copper Bus Bar Introduction
Copper busbar for switchboard instead of traditional cable can save space and time. Copper busbar has high conductivity and current rating. It is widely used for car battery, panel, distribution, electrical etc.
Nickel Plated Copper Bus Bar Processing
Punching, Bending, Tapping, Riveting, Plating, Heat-Shrinking, etc.
Nickel Plated Copper Bus Bar Details
| Material: T2 Red copper |
| Size: Customize |
| Product Name: Oxygen Free Nickel Plated Copper Bus Bar High Temperature Resistant |
| Thickness: 3.0mm |
| Width: 12mm |
| Length: 128mm |
| Feature: Excellent electrical conductivity |
| Finish: Plate with nickel |
Nickel Plated Copper Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Nickel Plated Copper Bus Bar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
Nickel Plated Copper Bus Bar feature
► Excellent electrical conductivity.
► High bonding strength.
► Pure T2 copper.
► Copper foil busbar to be used in transformer has a profile to
allow for transformer thermal expansion and contraction
► Made of copper foil provides maximum flexibility and reduces
vibration . It is typically used for copper busbar systems,
transformer connections and High Voltage Switchgear.
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.
