Outdoor Flat Curved Led Video Wall 2K 4K P2.6 P2.9 Stage Events / Ads Using

Categories Outdoor Rental LED Display
Brand Name: Conwin LED Display
Model Number: D-LK2.6, D-LK2.9
Certification: FCC, CE, ROHS
Place of Origin: China
MOQ: 1sqm
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm/month
Delivery Time: 15days
Packaging Details: Wooden box/Flight Case
Pixel Pitch: P2.604mm, P2.976mm
Material: Die-casting Aluminum
Size: 500X1000mm
Usage: Outdoor/Indoor
Weight: 15kg
Refresh rate: 3840hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Outdoor Flat Curved Led Video Wall 2K 4K P2.6 P2.9 Stage Events / Ads Using

2K 4K P2.6 P2.9 Outdoor Flat or Curved led Video Wall Stage Events / Ads Using

Application:

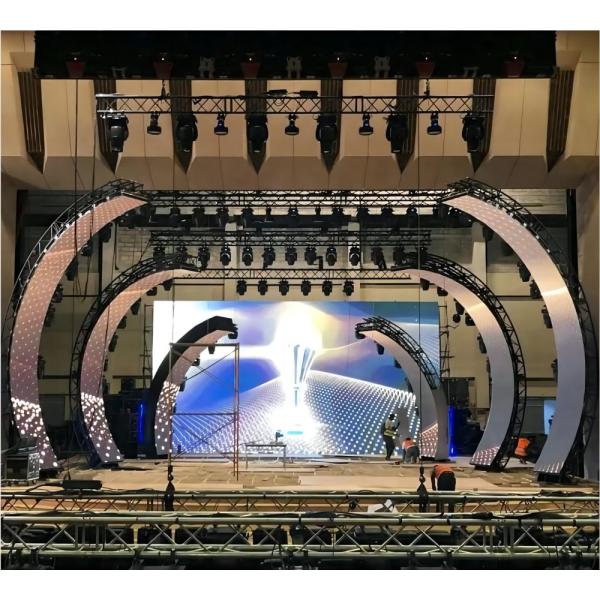

Rental led screen is widely used in advertising leasing, video conference, product release,stage background, wedding celebration and so on , it use die-casting aluminum, hoisting, stowage,back frame fixed installation requirements. ,it has high refresh and gray-scale ,high contrast ,high quality fine picture.
Light and strong cabinet design with quick locate handle lock can be quickly and easily assembled in various ways, it can be used in variety of occasions ,to meet different customer requirement for a variety of applications.

Features:

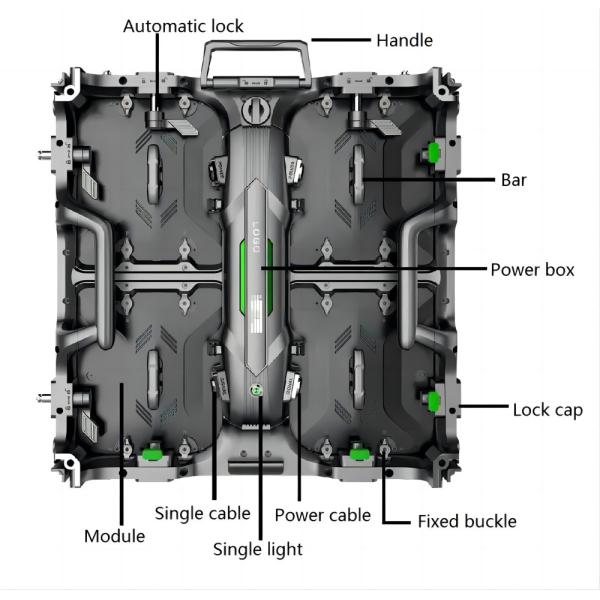

- Easy Maintenance Independent waterproof module ; front service and rear service by magnet ; quick installation and disassembly; time and labour saving.

- Corner Protection Design Protect the vulnerable corners during transportation.

- Trinity Positioning System Magnet, pin and linear rail ensure quick installation and precise evenness.

- Ultra Slim and Lightweight 8kg/panel, thickness 80mm/panel

- Module Security Lock Prevent modules from falling off or loosening due to the vibration or weakened magnet.

Parameters:

ModelD-LK2.6D-LK2.9D-LK3.9D-LK4.8
Pixel Pitch2.604mm2.976mm3.91mm4.81mm
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Pixel Density147,456 pixels/m2112,896 pixels/m265,536 pixels/m243,264 pixels/m2
Module Dimensions (W x H) (mm)250 x 250250 x 250250 x 250250 x 250
Panel Dimensions (mm)500 x 1000 x 80500 x 1000 x 80500 x 1000 x 80500 x 1000 x 80
Modules Per Cabinet (W x H)2 x 42 x 42 x 42 x 4
Module Resolution96 x 9684 x 8464 x 6452 x 52
Cabinet Resolution192 x 384168 x 336128 x 256104 x 208
Panel MaterialDie Cast AluminumDie Cast AluminumDie Cast AluminumDie Cast Aluminum
Weight per Cabinet15kg15kg15kg15kg
Colours281 trillion281 trillion281 trillion281 trillion
Contrast Ratio5,000 : 15,000 : 15,000 : 15,000 : 1
Average Power Consumption280 W /Sqm280 W /Sqm280 W /Sqm280 W /Sqm
Max Power Consumption800 W /Sqm800 W /Sqm800 W /Sqm800 W /Sqm
Brightness>5,000 nits>5,000 nits>5,000 nits>5,000 nits
Refresh Rate>3,840Hz>3,840Hz>3,840 Hz>3,840 Hz
Vertical Viewing Angle160°160°160°160°
Horizontal Viewing Angle160°160°160°160°
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
ServicingFront/RearFront/RearFront/RearFront/Rear
IP Rating (Front/Rear)IP 65IP 65IP 65IP 65
Operating Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%

Pictures:


Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.
