80A Single Phase Digital Meter , 1000imp/KWh Prepaid Kwh Meter

Categories Smart Prepaid Electricity Meter
Brand Name: Stron
Model Number: STE18-A
Certification: STS
Place of Origin: Hunan Province
MOQ: 20pcs
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per Month
Delivery Time: 14 work days
Packaging Details: Carton, 210*130*62mm
Phase: One phase
Certificate: STS
Type: Electricity Meter
Payment: Prepaid
Input: Keypad
TOU function: Yes
Low Credit Alarm: Yes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

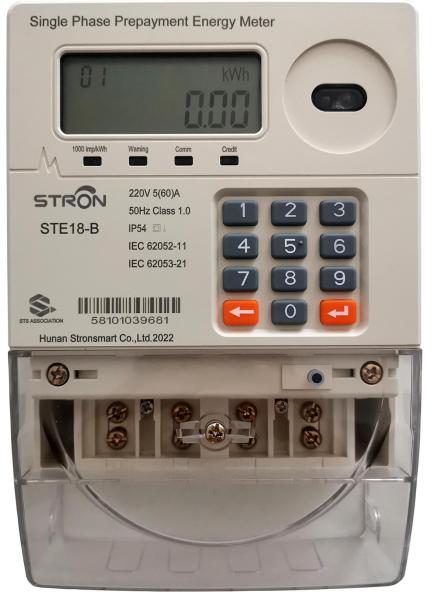

80A Single Phase Digital Meter , 1000imp/KWh Prepaid Kwh Meter

STS Standard Keypad One Phase Electricity Energy Meter Plastic Prepayment


Stron Smart STS single phase keypad electricity meter


Iith IP54 waterproof protection grade, the meter can be installed far away from indoor or even outdoor users on the pole. The programming of ste18-a supports remote connection and disconnection. When there is no credit card, the meter will shut down immediately. After charging through the corresponding 20 bit token, press enter and the meter will turn on. If you use the real-time clock chip and battery, the meter can also display your local time, the battery life is generally about 8 years, easy to replace.


STS split prepayment meter has a broad market prospect all round the world. We also design and manufacture STS prepaid instruments and ODM / OEM for other instrument manufacturers. If you need further information to make your business strong and profitable, we are glad to hear from you.

Features

  1. STS Standard
  2. Up to 8 years battery life
  3. Remote connection/disconnection
  4. IP54 waterproof
  5. Real-time clock
  6. Time of Use price
  7. Anti-tamper
  8. Lora-RF communication
  9. Mobile Payment
  10. ISO 9001; ISO 14001 compliant
Electrical Parameters
Nominal Voltage 230V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 5A
Maximum Current (Imax) 80A
Starting Current (Ist) 20mA
Active Energy Constant 1000imp/kWh
Measurement Accuracy Class 1.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25℃-70℃
Storage Temperature Range -40℃-85℃


Electric Magnetic Compatibility

AC Insulation Strength4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections8kV

Electrostatic Discharges


Contact discharge8kV
Air discharge16kV
Electromagnetic RF Field27MHz-500MHz10V/m
100KHz-1GHz30V/m
Fast transient burst test4kV
ProtectionClass II
