| Categories | Ustc Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | 20kg |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Name: | Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding |
| Diameter: | 0.08mm |
| Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper |
| Insulation: | Enamel |
| Rated Temperature: | 155/180 |
| Key word: | Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding |
| No. of strands: | 980 |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

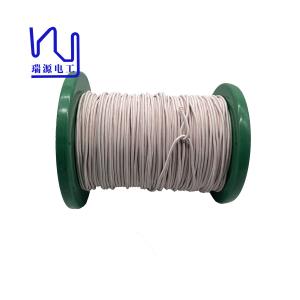

Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding
In the field of automobile manufacturing: silk covered litz wires can be used as connecting wires for electronic equipment, and can also be used for signal transmission of various mechanical components;
In the field of medical equipment: The silk covered litz wire has good insulation performance and is suitable for the connection of various medical equipment.
Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding | ||
Item | Standard | Test Result |
Outer diameter of single wire(mm) | 0.087-0.103 | 0.090-0.093 |
Conductor diameter(mm) | 0.08±0.003 | 0.078-0.08 |
Overall dimension(mm) | Max.4.36 | 3.35-.3.57 |
Pitch(mm) | 40±3 | √ |
Conductor Resistance (Ω/km at 20℃) | Max.0.003932 | 0.00368 |
Breakdown Voltage(V) | Min. 1100 | 2700 |
Pinhole(6m) | Max. 124 | 45 |
Key word | Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding | |
|
