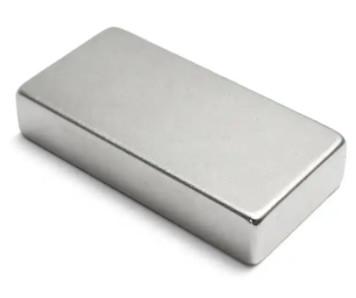

Powerful NdFeB Permanent Magnets N35-N52 Super Strong Block Magnets

Categories	NdFeB Permanent Magnets
Brand Name:	Monte Bianco
Model Number:	N35-N52 (M.H.SH.UH.EH.AH)
Certification:	ISO9001, ISO14001, TS16949
Place of Origin:	China
MOQ:	500PCS
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	1000k pcs/month
Delivery Time:	15-30 working days after received your payment
Packaging Details:	Standard Package
Name:	Super Strong Neodymium Magnets
Grade:	N35-N52 (M.H.SH.UH.EH.AH)
Coating:	Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating
Max Operating Temperature:	80-220℃（176-428℉）
Tolerance:	international standard
Composite:	Neodymium Magnet, NdFeB Magnet, Rubber Magnet, Rare Earth Magnet, Neodymium-Iron-Boron
Type:	Permanent, round block, ring, NdFeB magnet
Packing:	Foam Board+carton Box or Customized

Contact Now

Add to Cart

Company Info.

Monte-Bianco Magnets Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Powerful NdFeB Permanent Magnets N35-N52 Super Strong Block Magnets

Permanent Neodymium Magnet N35-N52 Grade NdFeB Super Strong Block Shape Magnet

The sintered neodymium-iron-boron (NdFeB) permanent magnet is widely used in permanent magnet servo motor, permanent magnet elevator tractor, wind driven generator, permanent magnet linear motor, permanent magnet step motor, permanent magnet micromotor,permanent magnet oil field motor, permanent magnet transducer, permanent magnet loudspeaker, electronic component, medical equipment and so on.

Please see the following our neo magnet grade

grade	Br		Hcb		Hcj		(BH)max		temperature coefficient		Max working temperature
	Br		Hcb		Hcj		(BH)max		α Br	β Hcj	Max working temperature
	T	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe	%/℃	%/℃	℃
N54	1.45-1.48	14.5-14.8	≥836	≥10.5	≥876	≥11	415-461	52-58	-0.12	-0.65	80
N52	1.42-1.45	14.2-14.8	≥836	≥10.5	≥876	≥11	398-415	50-52	-0.12	-0.65	80
N50	1.40-1.42	14.0-14.5	≥836	≥10.5	≥955	≥12	374-398	47-50	-0.12	-0.65	80
N48	1.37-1.40	13.7-14.2	≥836	≥10.5	≥955	≥12	358-374	45-48	-0.12	-0.65	80
N45	1.32-1.37	13.2-13.7	≥836	≥10.5	≥955	≥12	342-358	43-45	-0.12	-0.65	80
N42	1.29-1.32	12.9-13.2	≥836	≥10.5	≥955	≥12	318-334	40-42	-0.12	-0.65	80
N40	1.26-1.29	12.6-12.9	≥836	≥10.5	≥955	≥12	303-318	38-40	-0.12	-0.65	80
N38	1.22-1.26	12.2-12.6	≥859	≥10.8	≥955	≥12	287-303	36-38	-0.12	-0.65	80
N35	1.17-1.21	11.7-12.1	≥859	≥10.8	≥955	≥12	263-279	33-35	-0.12	-0.65	80
N33	1.14-1.17	11.4-11.7	≥836	≥10.5	≥955	≥12	247-263	31-33	-0.12	-0.65	80
N30	1.08-1.12	10.8-11.2	≥796	≥10.0	≥955	≥12	223-239	28-30	-0.12	-0.65	80
N52M	1.42-1.45	14.2-14.5	≥995	12.5	≥1114	≥14	389-422	49-53	-0.12	-0.65	100
N50M	1.39-1.45	13.9-14.5	≥1050	≥13.2	≥1114	≥14	374-406	47-51	-0.12	-0.65	100
N48M	1.37-1.42	13.7-14.2	≥1018	≥12.8	≥1114	≥14	366-390	46-49	-0.12	-0.65	100
N45M	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1114	≥14	334-366	42-46	-0.12	-0.65	100
N42M	1.29-1.32	12.9-13.2	≥955	≥12.0	≥1114	≥14	318-334	40-42	-0.12	-0.65	100
N40M	1.26-1.29	12.6-12.9	≥939	≥11.8	≥1114	≥14	303-318	38-40	-0.12	-0.65	100
N38M	1.22-1.26	12.2-12.6	≥916	≥11.5	≥1114	≥14	287-303	36-38	-0.12	-0.65	100
N35M	1.17-1.21	11.7-12.1	≥876	≥11.0	≥1114	≥14	263-279	33-35	-0.12	-0.65	100
N33M	1.14-1.17	11.4-11.7	≥852	≥10.7	≥1114	≥14	247-263	31-33	-0.12	-0.65	100
N30M	1.08-1.12	10.8-11.2	≥812	≥10.2	≥1114	≥14	223-239	28-30	-0.12	-0.65	100
N52H	1.42-1.45	14.2-14.5	≥1035	≥13.0	≥1353	≥16.5	398-422	50-53	-0.11	-0.58	120
N50H	1.39-1.42	13.9-14.2	≥1035	≥13.0	≥1353	≥17	374-398	47-50	-0.11	-0.58	120
N48H	1.36-1.42	13.6-14.2	≥1026	≥12.9	≥1353	≥17	358-374	45-49	-0.11	-0.58	120
N45H	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1353	≥17	334-366	42-46	-0.11	-0.58	120
N42H	1.29-1.32	12.9-13.2	≥955	≥12.0	≥1353	≥17	318-334	40-42	-0.11	-0.58	120
N40H	1.26-1.29	12.6-12.9	≥939	≥11.8	≥1353	≥17	303-318	38-40	-0.11	-0.62	120
N38H	1.22-1.26	12.2-12.6	≥916	≥11.6	≥1353	≥17	287-303	36-38	-0.11	-0.62	120
N35H	1.17-1.21	11.7-12.1	≥875	≥11.0	≥1353	≥17	263-279	33-35	-0.11	-0.62	120
N33H	1.14-1.17	11.4-11.7	≥851	≥10.7	≥1353	≥17	247-263	31-33	-0.11	-0.62	120
N30H	1.08-1.12	10.8-11.2	≥812	≥10.2	≥1353	≥17	223-239	28-30	-0.11	-0.62	120
N50SH	1.39-1.42	13.9-14.2	≥1035	≥13.0	≥1500	≥19	398-415	47-50	-0.11	-0.6	150
N48SH	1.36-1.42	13.6-14.2	≥1026	≥12.9	≥1592	≥20	358-398	45-49	-0.11	-0.6	150
N45SH	1.32-1.36	13.2-13.6	≥987	≥12.4	≥1592	≥20	334-366	42-46	-0.11	-0.6	150
N42SH	1.29-1.32	12.9-13.2	≥963	≥12.1	≥1592	≥20	318-334	40-42	-0.11	-0.6	150
N40SH	1.26-1.29	12.6-12.9	≥931	≥11.7	≥1592	≥20	303-318	38-40	-0.11	-0.6	150
N38SH	1.22-1.26	12.2-12.6	≥899	≥11.3	≥1592	≥20	287-303	36-38	-0.11	-0.6	150
N35SH	1.17-1.21	11.7-12.1	≥876	≥11.0	≥1592	≥20	263-279	33-35	-0.11	-0.6	150
N33SH	1.14-1.17	11.4-11.7	≥851	≥10.7	≥1592	≥20	247-263	31-33	-0.11	-0.6	150
N30SH	1.08-1.12	10.8-11.2	≥812	≥10.2	≥1592	≥20	223-239	28-30	-0.11	-0.6	150
N45UH	1.32-1.36	13.2-13.6	≥987	≥12.4	≥1990	≥25	334-366	42-46	-0.1	-0.55	180
N42UH	1.29-1.32	12.9-13.2	≥963	≥12.1	≥1990	≥25	318-334	40-42	-0.1	-0.55	180
N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	303-318	38-40	-0.1	-0.55	180
N38UH	1.22-1.26	12.2-12.6	≥915	≥11.5	≥1990	≥25	287-303	36-38	-0.1	-0.55	180
N35UH	1.17-1.21	11.7-12.1	≥875	≥11.0	≥1990	≥25	263-279	33-35	-0.1	-0.55	180
N33UH	1.14-1.17	11.4-11.7	≥851	≥10.7	≥1990	≥25	247-263	31-33	-0.1	-0.55	180
N30UH	1.08-1.12	10.8-11.2	≥812	≥10.2	≥1990	≥25	223-239	28-30	-0.1	-0.55	180
N38EH	1.22-1.29	12.2-12.9	≥907	≥11.4	≥2388	≥30	287-318	36-40	-0.09	-0.5	200
N35EH	1.18-1.25	11.8-12.5	≥875	≥11.0	≥2388	≥30	263-295	33-37	-0.09	-0.5	200
N33EH	1.14-1.17	11.4-11.7	≥851	≥10.7	≥2388	≥30	247-263	31-33	-0.09	-0.5	200
N30EH	1.08-1.12	10.8-11.2	≥812	≥10.2	≥2388	≥30	223-239	28-30	-0.09	-0.5	200
N32AH	1.12-1.20	10.8-12.0	≥860	≥10.8	≥2626	≥33	247-279	31-35	-0.09	-0.44	220

Support all magnet plating , like Ni-Cu-Ni, Zn, Epoxy , Gold, Silver etc.

1. Neodymium magnets are made of Neodymium, Iron and Boron. If left to the elements, the iron in magnet will rust.To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated.

2. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes magnets much more durable than the more common single nickel plated magnets.
