| Categories | Metallic Powder Coat |
|---|---|
| Brand Name: | Hsinda |
| Model Number: | Chameleon |
| Certification: | ISO9001; SGS; ROHS,AAMA,FDA |
| Place of Origin: | Chengdu |
| MOQ: | 100kg |
| Price: | 10USD/KG |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000TONS/YEAR |
| Delivery Time: | 3-7 days after payment |
| Packaging Details: | Inner packing :polyethylene bag; Outer packing :paper carton |
| Main Raw Material: | epoxy, polyester ,epoxy polyester etc |
| State: | Powder state |
| Gloss: | FLAT |
| Main Type: | epoxy ,polyester ,epoxy polyester powder coating |
| Raw Materials Brand: | DSM resin , Dupont etc |
| Curing: | 180-200℃,15 min |
| Particle Size: | Average 30-42μm |
| surface: | smooth |
| Company Info. |
| Chengdu Hsinda Polymer Materials Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

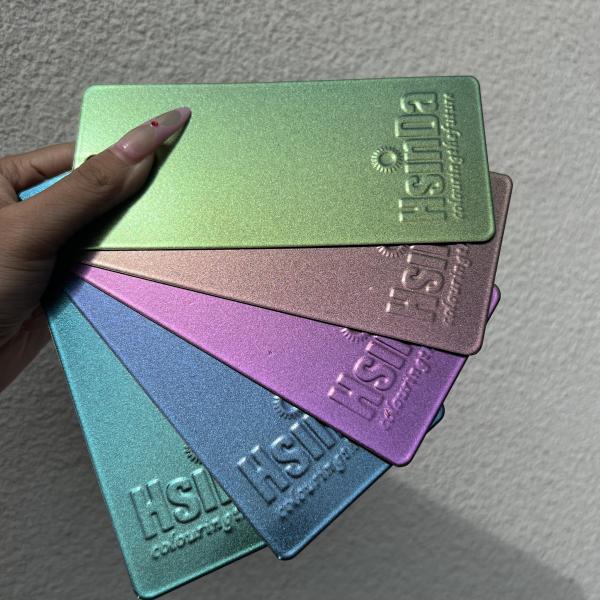

Chameleon Color Shifting Metallic Powder Coating epoxy polyester Paint
Main components
Resin: such as epoxy, polyester, polyurethane, etc., determines the
coating performance (weather resistance, hardness, etc.).
Curing agent: Reacts with resin to form a stable coating.
Pigments: provide color and coverage.
Additives: such as leveling agents, texturing agents, to improve appearance or functionality.
Key Features
Environmental Protection: Non volatile solvents (VOCs) reduce
pollution and fire risks.
Efficient: Spraying can recycle excess powder, with a utilization rate of over 95%.
Durable: The coating is impact resistant, corrosion-resistant, and resistant to chemicals, suitable for harsh environments.
Diversification: Different gloss and texture (such as sanding and metallic effects) can be adjusted.
Processing
Electrostatic spraying: Powder is charged and adsorbed onto the
workpiece, and then baked and solidified (usually 180-200 ℃).
Fluidized bed: Preheating the workpiece into powder, suitable for thick coatings (such as pipelines).
.
Common uses
Household appliances: refrigerator, washing machine casing.
Building materials: doors and windows, aluminum profiles.
Automobiles: wheel hubs, chassis components.
Industrial equipment: fields with high anti-corrosion requirements such as agricultural machinery and shelves.
Product overview
| Type | Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | Ral&Pantone color |
| Surface Finish | Superior gloss and color retention |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| Film thickness | Not less than 100μm |
Instruction
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200℃,10 min-15 min |
Storage stability
| Store in ventilated, dry, clean room, temperature < 25℃ | Relative humidity 50-65% |
| Away from direct sunlight, fire, heat | For best performance, use within 6 months |
Product process
Trade items of Products
| Trade terms | FOB, CIF,CRF,CNF |
| Payment terms | T/T, L/C , West Union ,Moneygram , Paypal etc |
| Payment condition | 30% deposit in advance,70% balance before shipment |
| Delivery time | 3-7 days after deposit |
| Shipping | By sea, by air and by express delivery |
| Sample Powder will be delivery by courier ,like DHL,UPS,FEDEX etc. 5-8 DAYS to arrival | |
| Official Order Powder will be ship by SEA .15-30 DAYS to arrival |
Quality control:
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Shigh gloss mirror chrome sliver spray paint powder coating Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
|
