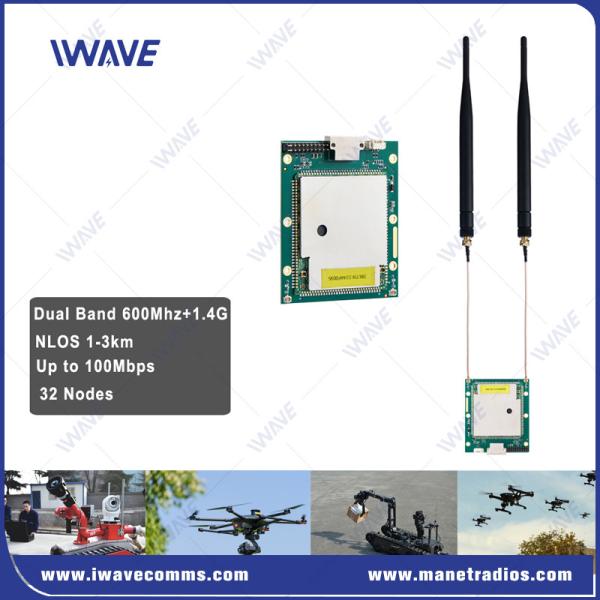

NLOS 3km Mesh Radio Module Hd Video Transmitter

NLOS 3km Mesh Radio Module Hd Video Transmitter

Description

IWAVE offer both enclosed and OEM products to wirelessly move serial data.FD-7800 features user selectable frequency within a dual operating band 600Mhz(566Mhz-678Mhz) and 1.4Ghz(1420-1530Mhz)and programmable bandwidths (1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz).IWAVE also offer high power (up to 10W) communications to provide robust wireless link over very long distance.FD-7800 is available in OEM (bare board) format for platform integration to creat a advanced, scalable, and efficient Mobile Ad Hoc Networking (MANET).

Key Features

• The device can be equipped with video coding module, integrated voice module, WLAN wireless module, GIS positioning module or public network gateway module to meet the application requirements of different scenarios.

• FD-7800 adopts LTE-A's CA technology. Compared with MIMO mode, CA mode has no restrictions on the antennas installation location and spacing, which making deployment more flexible.

• It adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.

• The miniature, lightweight and robust design allows the FD-7800 to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the FD-7800 allow for high quality wireless video and telemetry communications.

Application

• Ethernet Wireless Extension

• UGV Fleet Communication and management.

• Mobile Team Communication

• UAV Swarm Wireless Communication

• Wireless Telemetry Data

• Wireless Video

• Control Systems for Unmannded Platform

Specification

  WHO WE ARE?

The original standard LTE network requires the participation and control of base stations and core networks in addition to terminals. Now each node of our star topology network devices and MESH network devices is a terminal node. These nodes are lighter and retain many advantages of the original LTE technology. For example, it has the same architecture, physical layer and subframe as LTE. It also has LTE’s other advantages such as wide coverage, high spectrum utilization, high sensitivity, high bandwidth, low latency, and dynamic power control.

Compared with normal wireless link, such as wireless bridge or other devices based on wifi standard, the LTE technology has a subframe structure, the uplink and downlink data rate is not same. This characteristic enable the wireless link products' application more flexible. Because the uplink and downlink data rate can be adjusted based on real service requirements.

In addition to the self-developed product series, IWAVE also has the ability to integrate upstream and downstream product resources in the industry. For example, based on self-developed 4G/5G industry products, IWAVE integrates wireless terminal products and industry application platforms, thereby providing terminals - base stations - core networks - End-to-end customized products and industry solutions for industry application platforms. IWAVE focuses on serving domestic and foreign industry partners, such as special industry communications fields such as park ports, energy and chemicals, public security, special operations, and emergency rescue.
