| Application: | advertising, outdoor advertising |
| Color: | full color |
| Panel Size: | 320*160mm |
| Place of Origin: | Guangdong, China |
| Model Number: | GTKE100-S |
| Brand Name: | GTEAK |
| Usage: | Outdoor |
| Tube Chip Color: | FULL COLOR |
| Display Function: | Video |
| Pixels: | 10mm |
| Brightness: | 5500cd/sqm |
| Module size: | 160*160mm/160*320mm |
| Pixel configuration: | SMD 1R1G1B |
| Name: | full color smd 10mm led advertising display screen |
| Keyword: | 10mm led advertising display screen |
| Pixel Pitch: | p10 |
| Packaging Details: | Wooden carton box or flight case |
| Port: | Shenzhen |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |
| Price: | $400.00-600.00/square meters |
| Company Info. |
| test date40v61 |
| View Contact Details |
| Product List |

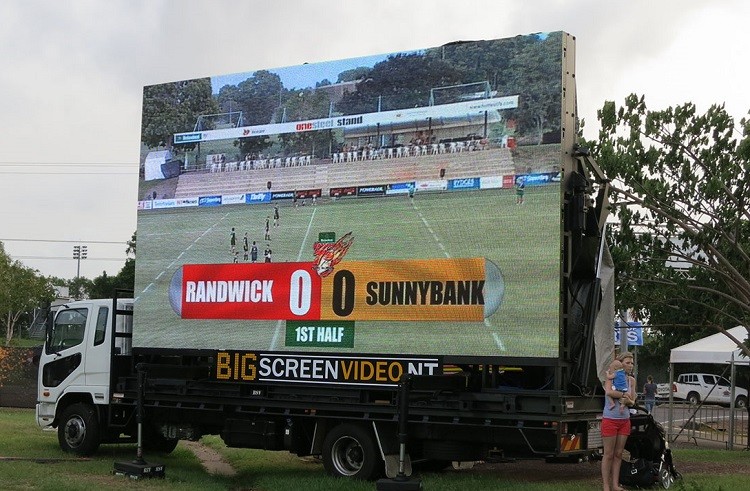

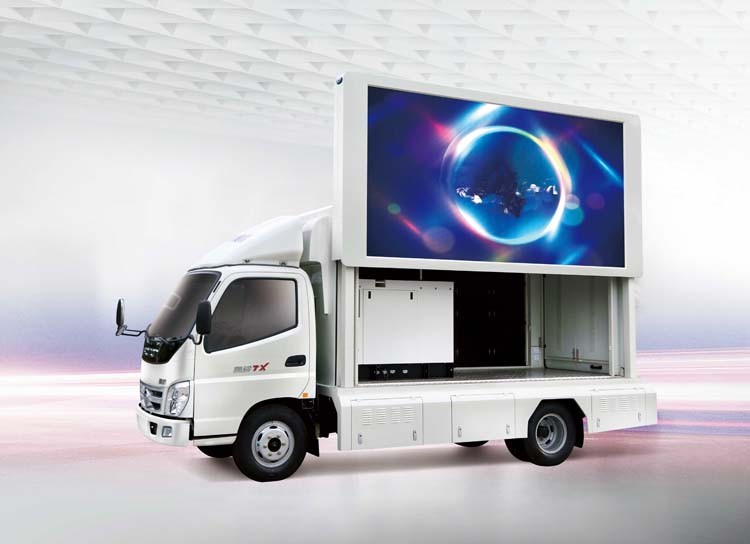

shenzhen mobile led screen trailer for the outdoor advertsiing
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
| Parameter | GTKE100-S | |
| Basic Parameter | Pixel Pitch | 10mm |
| Led configuration | SMD 3 in 1 | |
| Pixel Density | 10,000 pixels/sqm | |

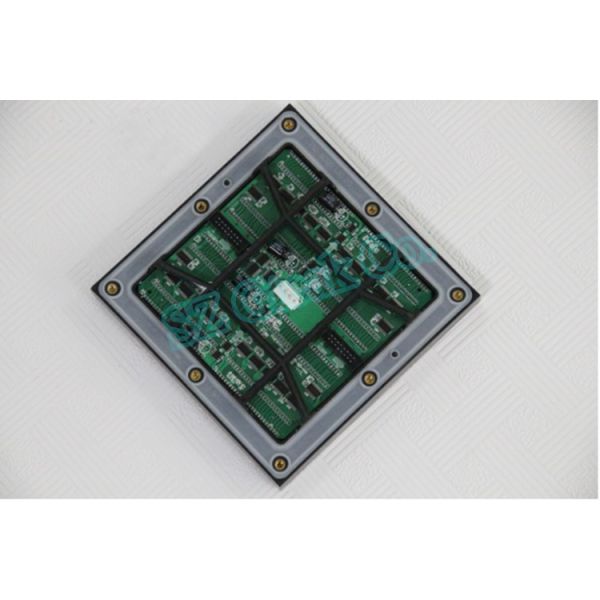

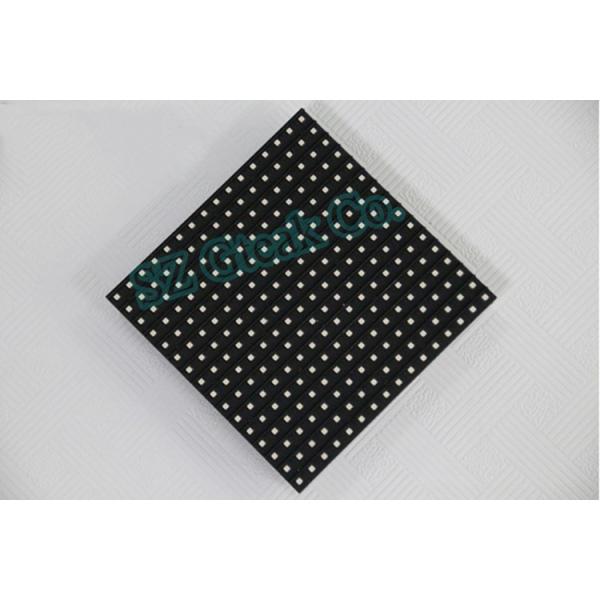

| Module resolution | 16*16 pixels | |
| Module Dimension | 160*160mm | |
| Cabinet resolution | 64*64 pixels | |
| Cabinet Dimension | 640*640mm | |
| Optical Parameter | Color Grayscale (bit) | 16bit |
| Frame Frequency (Hz) | 50/60Hz | |
| Brightness (nit) | >7000cd/SQM Adjustable | |
| Viewing angle (Vertical) | 140 degree | |
| Flatness error | ≤0.5mm | |
| Using Parameter | Working Voltage (V) | AC: 90-264V |
| Max. Power Consumption (W/m2) | 900W/SQM | |
| Storage Temperature (°C) | -20~60 | |
| Operating Temperature (°C) | -10~40 | |
| Storage Humidity (RH) | 10%~90% | |
| Operating Humidity (RH) | 10%~90% | |
| IP Rating (Front / Rear) | IP65 / IP54 | |
| Lifetime Typical Value (hrs) | 100,000 | |
1. Can we make any size of star sports live cricket match led
display screen?
Nope, according the led module size and cabient size, such as p10
star sports live cricket match led display screen , the module is
320*160 or 160*160
2,What's best size of star sports live cricket match led display
screen?
The best aspect ratio of star sports live cricket match led display
screen are W16:H9 or W4:H3
3,How to install star sports live cricket match led display screen
?
We will provide drawing of steel structure or hanging truss,then
you can install star sports live cricket match led display screen
very easy.
4,How to order led display screen for us?
Please tell me indoor or outdoor do you need,size of the
screen,where will be application of them as well
5,How to shipment?
Normally,our led display screen will be shipped by air and express (DHL,Fedex.UPS) and in container by sea for the mass order
6,How to do payment?
You can transfer payment by TT,West union, recommand Alibaba Trade
Assurance.
Payment term, we recommand Alibaba Trade Assurance.
With Trade Assurance, your trading problems are solved. If your products are not shipped on time or the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.
Trade Assurance is a free service provided by Alibaba.com and Gteak
|
