| Categories | Paper cutting machine |
|---|---|
| Brand Name: | BINPENG |
| Model Number: | BPRC460 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | FOB NINGBO |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per months |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Wooden case package |
| Name: | Round corner cutter machine |
| Functions: | Round corner cutting ,trimmer or guillotine |
| Speed: | up to 20 times / minuter |
| Voltage: | 3PH,380V |
| Max cutting height: | Up to 70mm |
| Max book width: | 460mm |
| Min book width: | 120mm |
| Round corner trimmer type: | R3.1 - R15.9 |
| Power: | 2.2KW |
| Weight: | 310KG |
| Machine dimension: | 1020x700x1420mm |
| Working Method: | hydraulic round corner trimmer |
| Company Info. |
| NINGBO BINPENG MACHINERY CO.,LTD |
| View Contact Details |
| Product List |

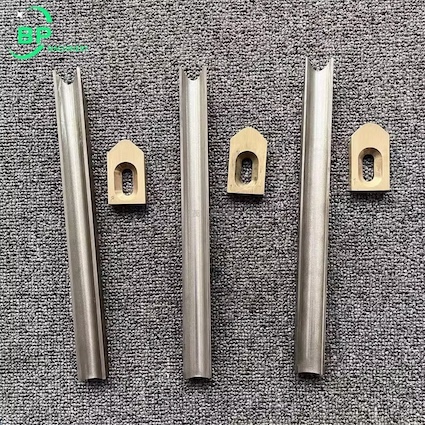

This type round corner cutter is a semiautomatic double head round corner cutter designed for efficient production. Fed from the front it cuts two corners simultaneously. After feeding the pile, the operator presses a pedal, to activate the cycle of the machine. The machine is hydraulic. Blades are available for different size radii.
Application
Feature

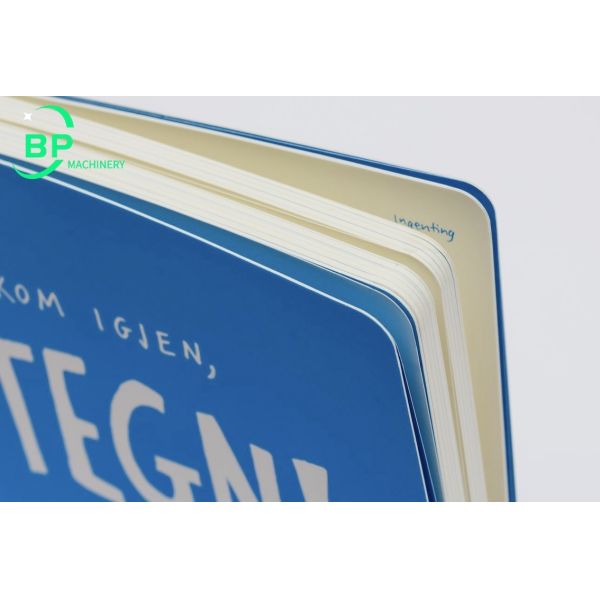

1. Wide applicability: Suitable for cutting corners on books ,This machine can cut both corners simultaneously and has certain requirements regarding the length and right angles of the paper or book. It is particularly suitable for products cut by three-sided cutting.
2. Can cut both corners simultaneously, high efficiency, can cut rounded corners from R3 to R12.7, and can also cut right angles.
3. Simultaneous movement of the upper and lower blades for easy adjustment.
4. Driven by a hydraulic system, stable and reliable pressure, with few malfunctions.
Technical data :
| Item | Round corner cutting machine |
| Model | BPRC460 |
| Max paper size | 460mm |
| Min paper size | 120mm |
| Max book thickness | 70mm |
| Rounded corner size | R3.1 - R15.9 |
| Speed | Up to 20 times/minute |
| Power consumption | 2.2kw |
| Power Supply | 380v ,3 Phase |
| Net Weight | 310kg |
| Machine Dimension | 1020x700x1420mm |
